Country Specific Parts Lists
The most commonly available parts manuals on the web are of the USA version machines which would be Suzuki's Country Code E3. That can be a problem when doing a restoration as the information may be incorrect if you don't happen to be working on a US (or Canadian) bike as there are often subtle differences. As an example, front brake switches were not standard in most countries up till the B models, but were in the USA and Canada. Likewise the rear turn signals in the USA were mounted on a bracket, and elsewhere were not, the headlamps were often different as were the left switch gear and the list goes on !
What follows then, are the country specific parts lists I have been able to collect to date - if your bike isn't listed, and if it isn't a US or Canadian import, then it would conform to what Suzuki called their General Export model, E1. Parts manuals are available from a couple of places - I recommend e-ClassicBike located in New Zealand as the prices are reasonable, and the quality is quite good.
For parts list specific to Japanese Domestic Market (JDM) machines, or USA/Canadian spec machines, please see the listings under the heading Parts Manuals.
To navigate - clicking on a link opens the specific page in the manual, and then clicking on either the left or right side of that image moves forward or back through the manual. Enjoy !
E2 UK |
E4 France |
E6 South Africa |

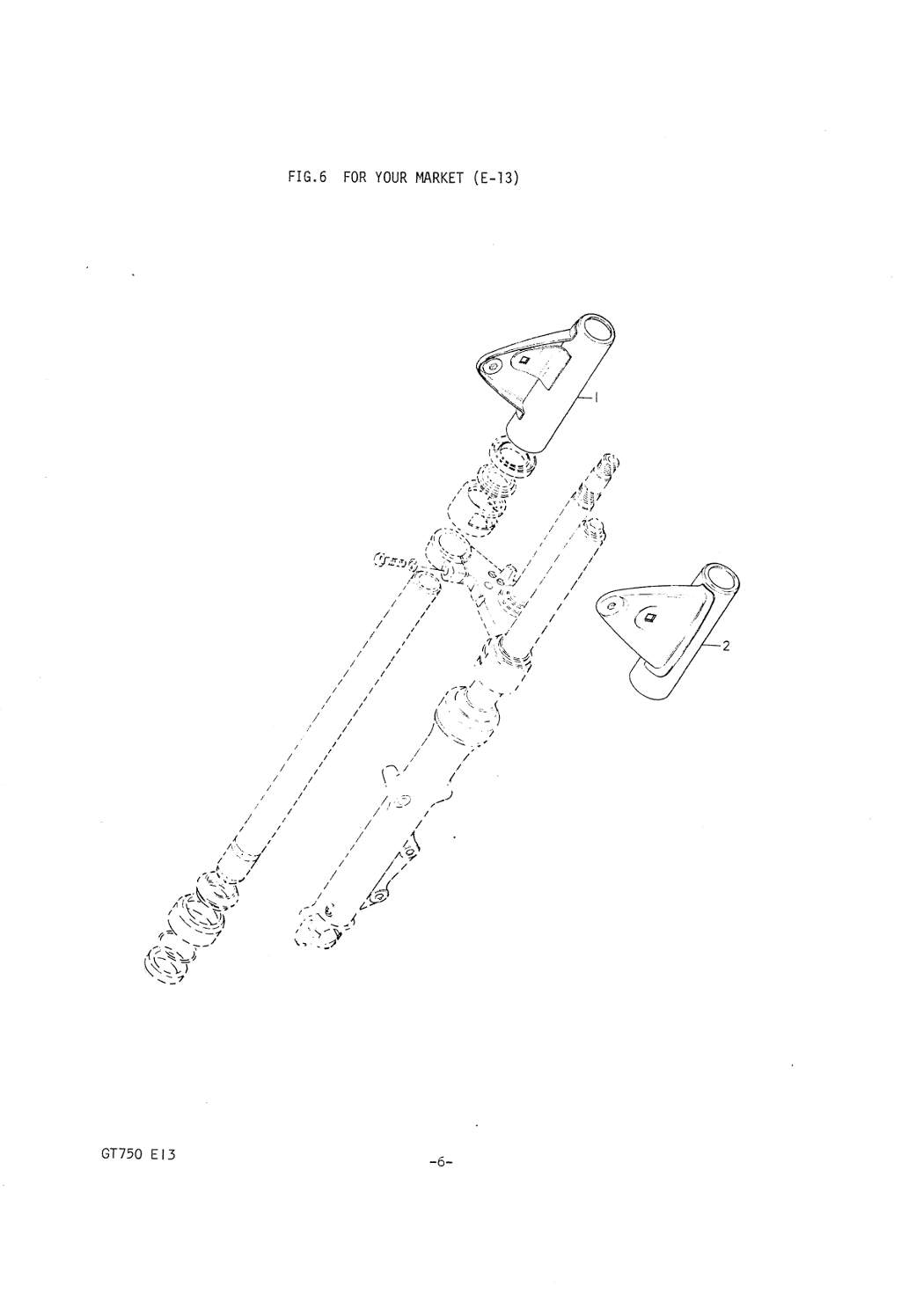

E13 South East Asia |
E17 Sweden |

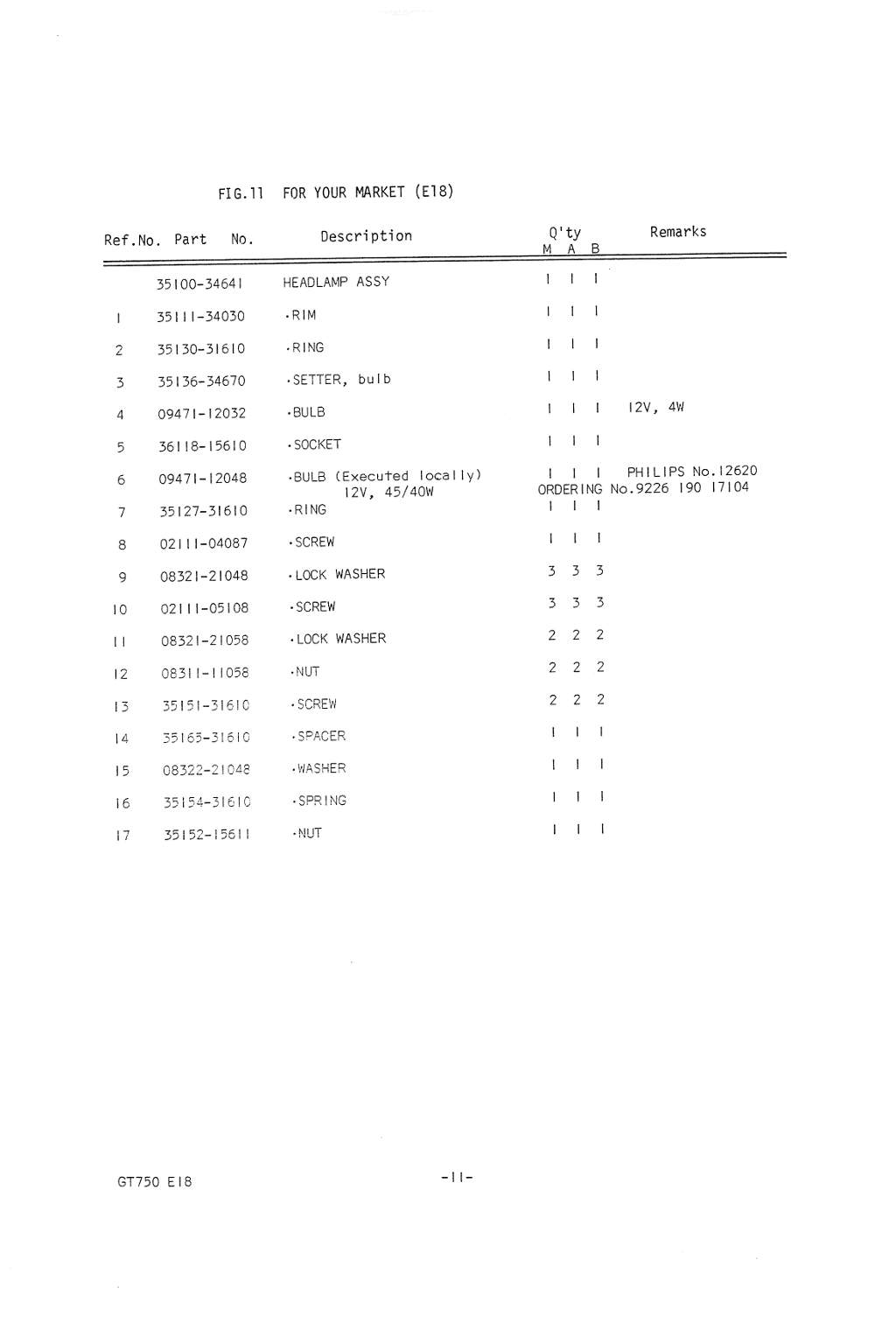

E18 Switzerland, E39 Austria |
E21 Belgium, E34 Italy, E53 Spain |
E22 West Germany |
E22 Australia |
E25 The Netherlands |
